Product parameters
| Model | BRC540C70005 | DCR | 4.0Ω |
| Sensitivity | 110.5dB@1000Hz | MPO @ peak | 128.0dB |
| Nominal Drive | 70mV RMS | Acoustic Load | 10.0mm x 1.0mm tubing into IEC711 |
| Port Location | 12C | Back vent | YES |
*the website data is for reference only. In case of any change or adjustment, it is subject to the actual product without notice.

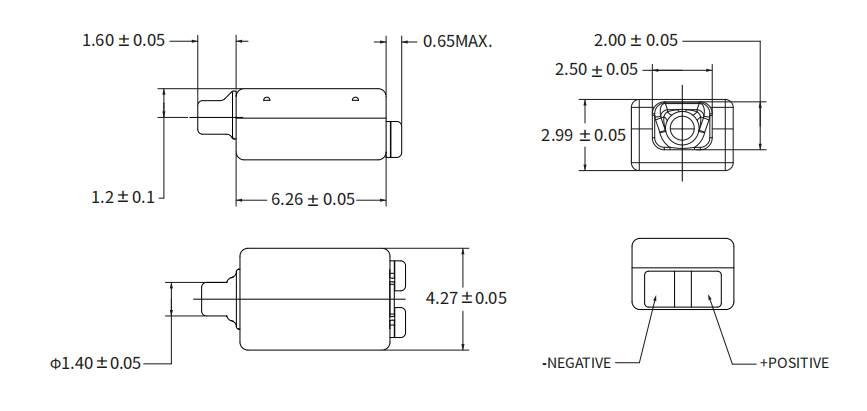

Appearance Size

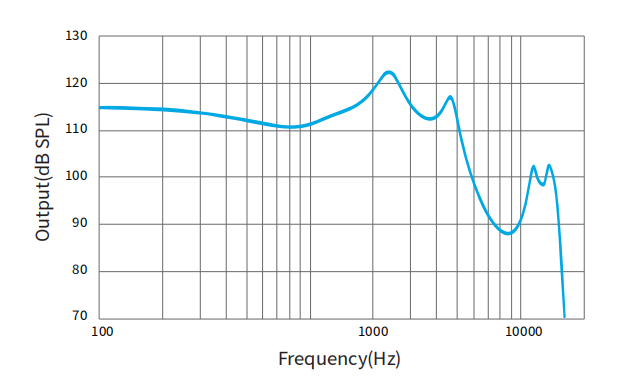

Frequency curve
